Description
HD5R60MD-75-860-20 MEDIUM DUTY WORKING TEMP. -10C +120C – use
General purpose.
USE:
MEDIUM ITEMS 100KGS UP TO 500KGS* With
centre support only; Conveyor rated up to 1000kgs per linear meter
Conveyor
can be set:
Horizontal
for manually moved items.
Incline
(slop) for gravity moved items. Brake rollers* maybe required control speed.
|

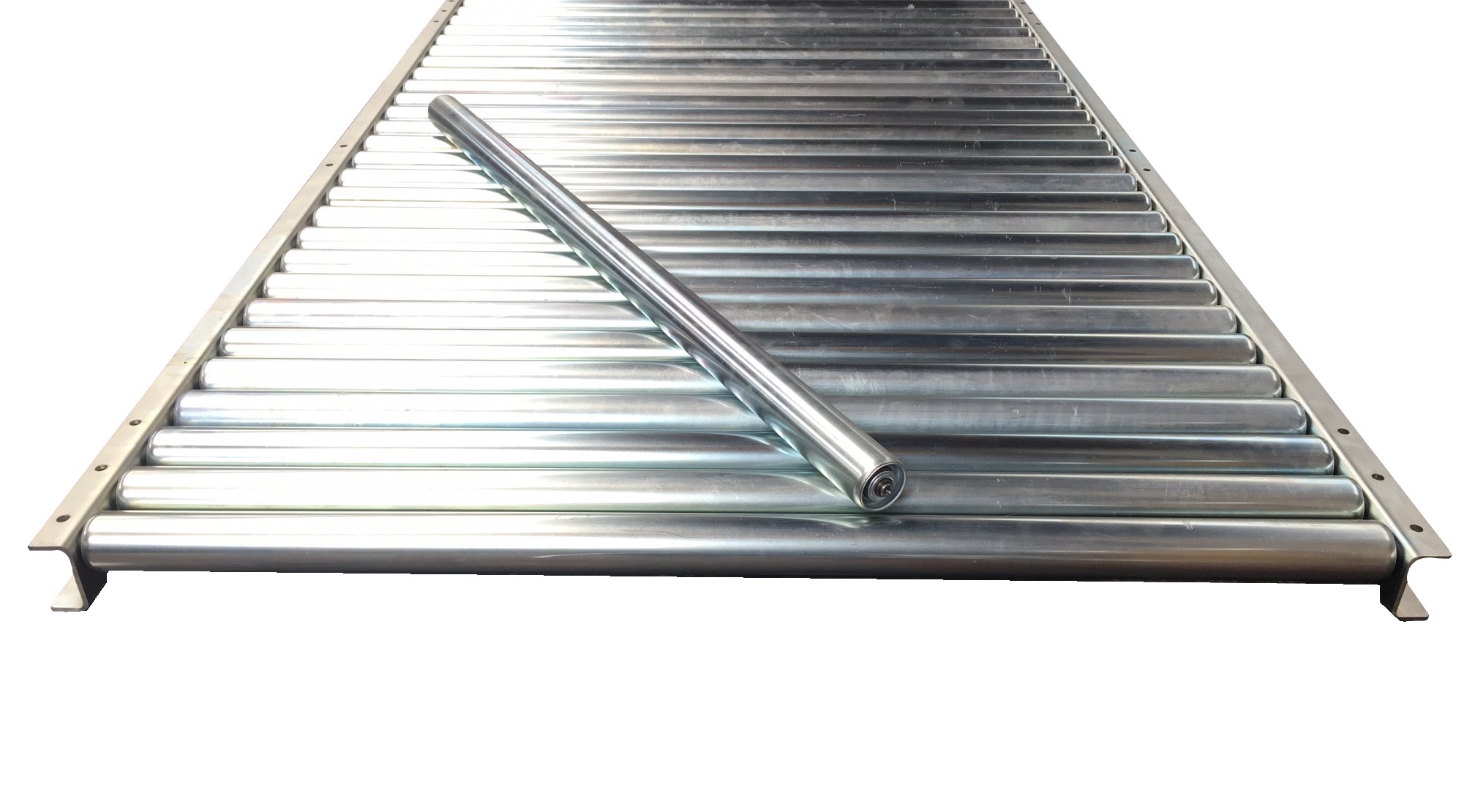

Conveyor Type HD5R60MD-75 ¦
Rollers Ø60x2 tube / Pitch 75mm. Operating temperature
-10C to +120c |
||
|
INSIDE FRAMES (BB) |
OUTSIDE FRAMES |
CONVEYOR LENGTH |
|
860MM |
940MM |
2025MM |
|
|
||
|
TO SUIT 860 INSIDE FRAMES (BB) |
MINIMUM 450M OPERATING
HEIGHT |
MAXIMUM 1300MM OPERATING
HEIGHT |
|
These stands are cut to
suit your requested operating height (TOR). Stands will have further upwards
adjustment +250mm. Please state TOR on order |
||
