Description
HD5R60MD-75-1260-24 MEDIUM DUTY
WORKING TEMP. -10C +120C – use General purpose.
USE: MEDIUM
ITEMS 100KGS UP TO 500KGS* With centre support only; Conveyor rated up to
560kgs per linear meter
Conveyor
can be set:
Horizontal for manually moved items.
Incline (slop) for gravity moved
items. Brake rollers* maybe required control speed.
|
Conveyor Type

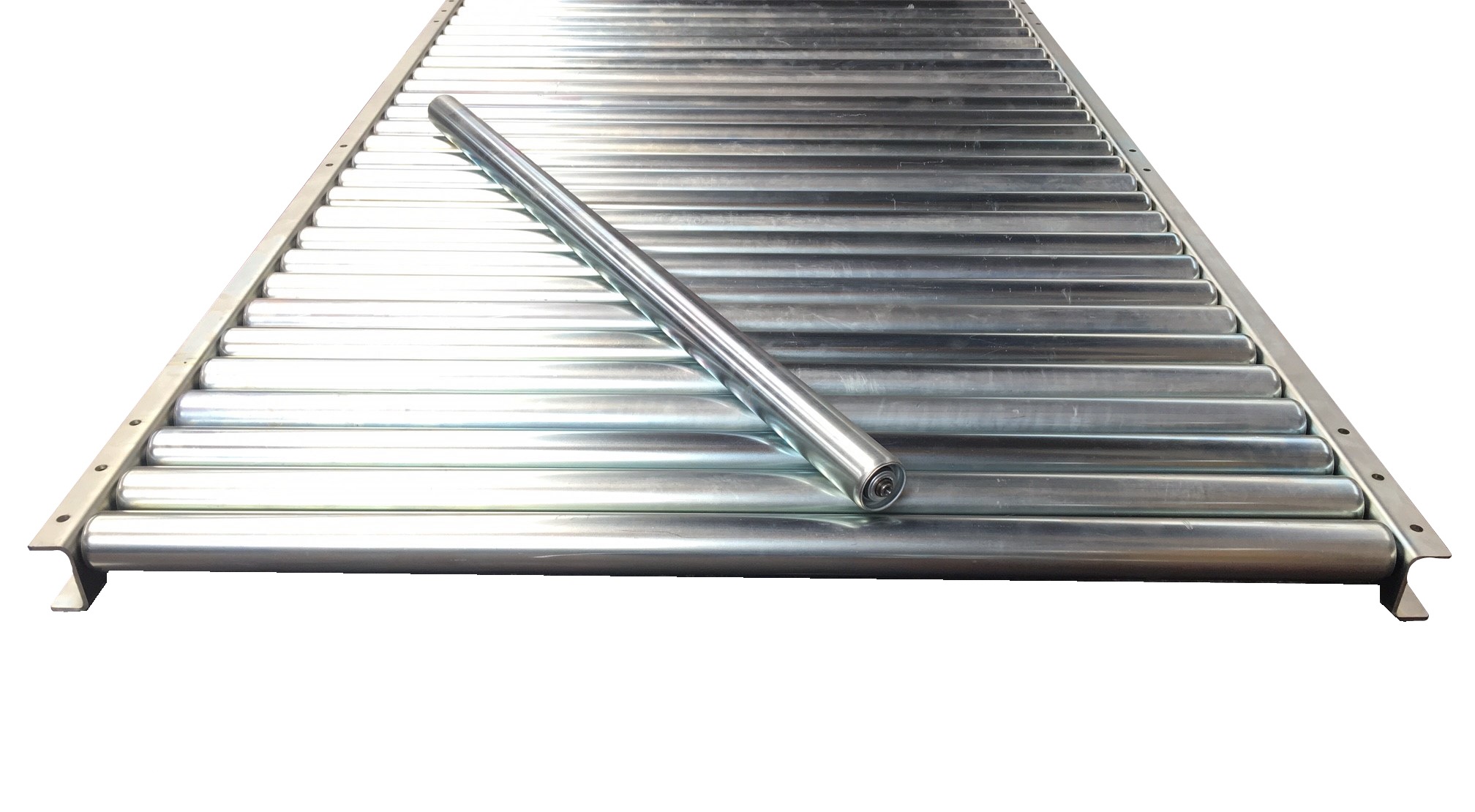

HD5R60MD-75 ¦ Rollers Ø60x2 tube / Pitch 75mm. Operating
temperature -10°C to +120°C ¦ Rated
560kgs per linear meter |
||
|
INSIDE
FRAMES (BB) |
OUTSIDE
FRAMES |
CONVEYOR
LENGTH |
|
1260MM |
1340MM |
2400MM |
|
|
||
|
TO SUIT 1260 INSIDE FRAMES (BB) |
MINIMUM
450M OPERATING HEIGHT |
MAXIMUM
1300MM OPERATING HEIGHT |
|
Stands
are cut to suit your requested operating height (TOR). Stands will have
further upwards adjustment +250mm. Please state TOR on order |
||
