Description

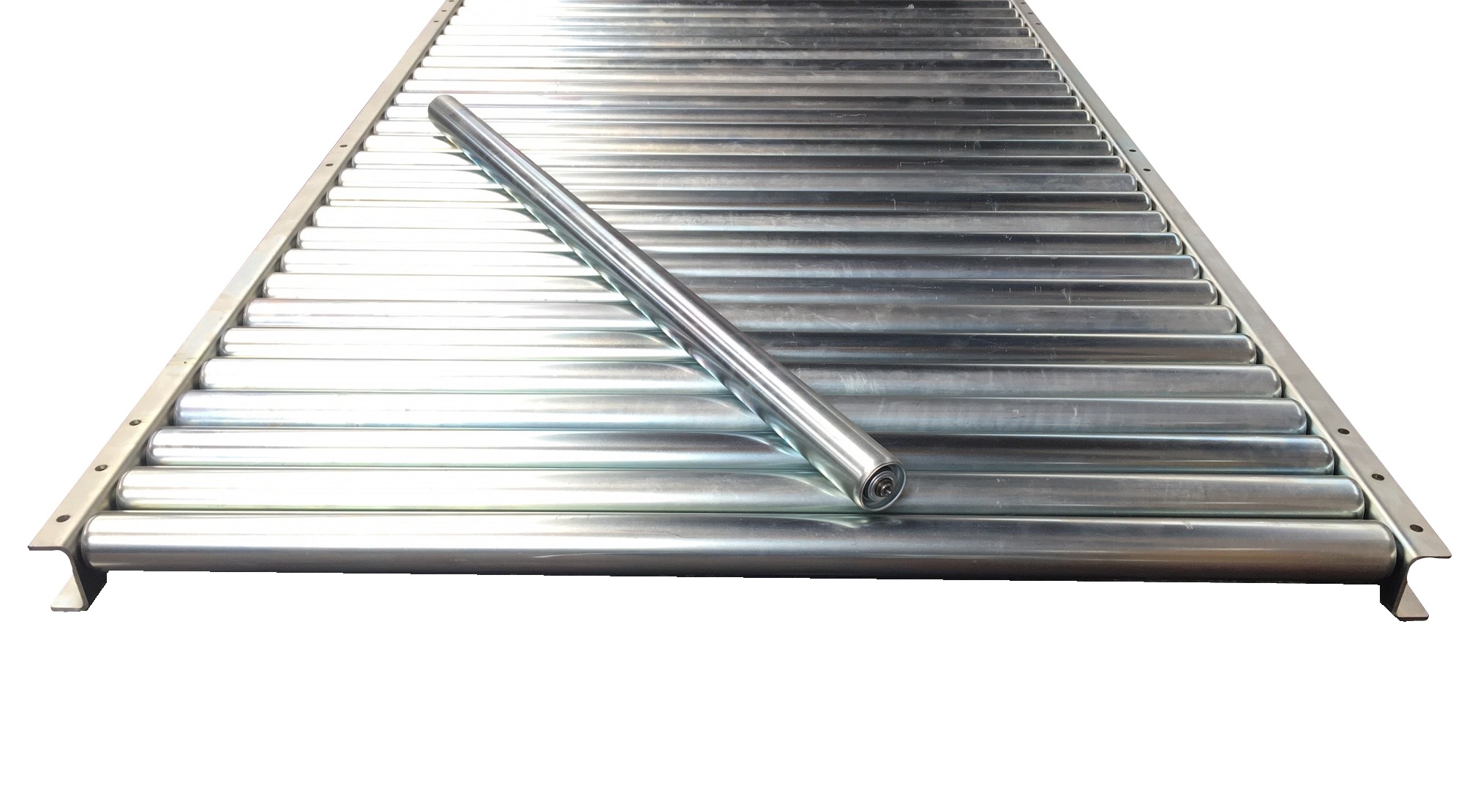

HD5R60MD-150-660-30 MEDIUM DUTY
WORKING TEMP. -10C +120C – use General purpose.
USE: MEDIUM ITEMS 100KGS UP TO 500KGS* With
centre support only; Conveyor rated up to 510kgs per linear meter
Conveyor can be set:
Horizontal for manually moved items.
Incline (slop) for gravity moved items. Brake rollers* maybe
required control speed.
|
Conveyor Type
HD5R60MD-150 ¦ Rollers Ø60x2 tube / Pitch 150mm. Operating
temperature -10C to +120c |
||
|
INSIDE
FRAMES (BB) |
OUTSIDE
FRAMES |
CONVEYOR
LENGTH |
|
660MM |
740MM |
3000MM |
|
|
||
|
TO SUIT 660 INSIDE FRAMES (BB) |
MINIMUM
450M OPERATING HEIGHT |
MAXIMUM
1300MM OPERATING HEIGHT |
|
These
stands are cut to suit your requested operating height (TOR). Stands will
have further upwards adjustment +250mm. Please state TOR on order |
||
