Belt Conveyor Steel Roller Drums / Pulleys

Step:
  • 1
  • 2
  • 3



Enquire Now

Roller Diameter Axle
60mm x5 20mm shaft 20mm machined keyway 1 end, 20 plain ends

IMPORTANT: †Load Capacity calculated on standard lengths. Please ask to confirm advisable load on quotation/order

Description

Conveyor Drums (pulleys) include a cylindrical shell (crowned or parallel), end discs supported within the shell and a fixed shaft - plain or with keyway.

Machined Rollers include a cylindrical shell (crowned or parallel), end discs with integral bearings supported within the shell & a captivated shaft.

Call 01384 77427

Drums/Rollers are machined from Mild Steel, Stainless & Mild steel Mix or in plastic; Polypropylene or Ultra High Molecular weight Density (UHMW)

DESIGN:-

  • Smooth machined surfaces provide maximum belt protection.
  • Hubs and end disc are accurately machined to ensure concentricity.
  • Drums /Machined rollers are available with a parallel or crowned*

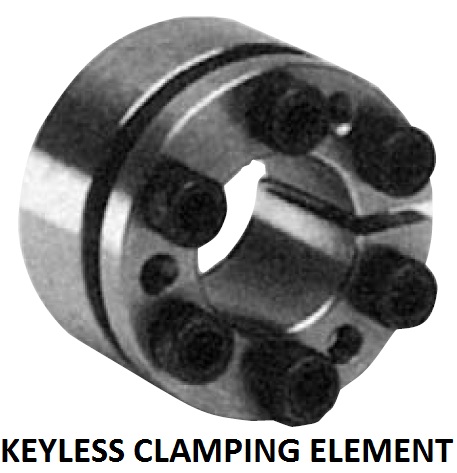

  • Steel Drums are now fitted with KEYLESS CLAMP, for cost effective maintenance with superior performance.

Lagging (rubber/polyurethane covering) can be provided to increase traction between belt and pulley.

*crowned for belt tracking

Machine Turned   Keyless Clamping Element Machine Turned
