Description

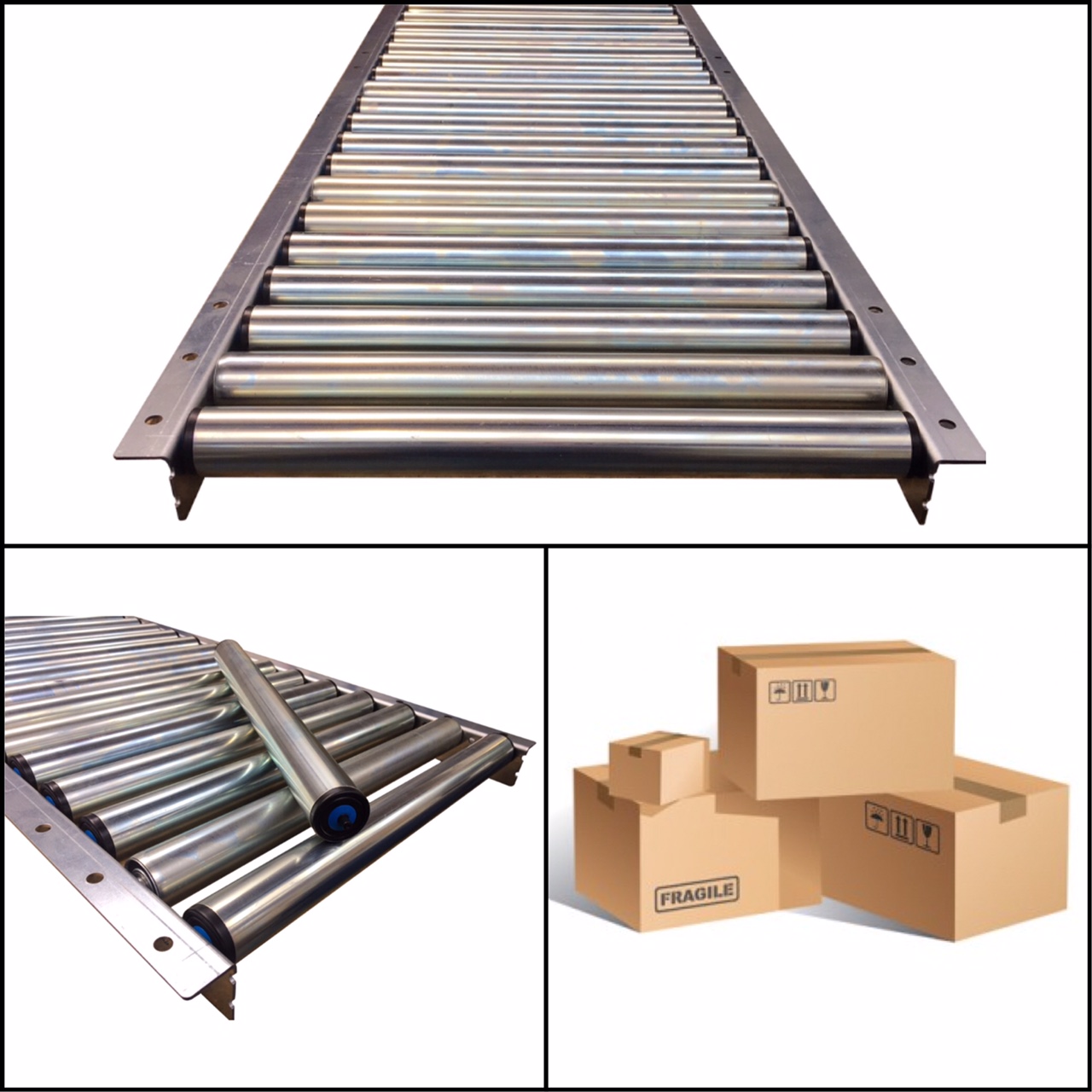

AED Gravity GTL low-cost conveyor
track: Ideal for plastic Totes / Flat bottomed Packaged Items to travel
with minimal effort. Available Lengths in singles our multiples of 1m, 1.6m
& 2m long
Standard widths: 330, 430, 530, 630 *Alternative
widths are available from 250mm to 900 wide. please ask for price
Helpful hints choosing the right conveyor:
1. What Length or multiples
of conveyor required 1m, 1.6m or 2m? You can order any length combination to
suit application.
2. Do I want plastic or
Steel rollers? Plastic for light goods <20kgs & steel for goods upto
50kgs
3. What width do I need?
Consider largest width of goods & select closest. If rollers
are above frames, occasional oversized items can
travel> Below frames, items cannot be over sized but will be more
secure. Min. 50mm clearance between item width & conveyor width (BB) insure
items travel freely.
4. How do I link conveyors
together to make for a longer run? You will have to use our ADJ2 or ADJ3 stand to link. If you do not
purchase stands, you will have to make your own arrangements.
|
Ø50mm
Rollers BZP Steel ¦ Roller Pitch 75mm/ 3” |
|||
|
Width (BB) |
Conveyor Length |
Above Frames |
Below Frames |
|
330mm /13" |
1m (975mm) |
GTLA330-10 |
GTLD330-10 |
|
330mm /13" |
1.6m (1575mm) |
GTLA330-16- |
GTLD330-16- |
|
330mm /13"
|
2m (2025mm) |
GTLA330-20- |
GTLD330-20- |
|
430mm /17" |
1m (975mm) |
GTLA430-10- |
GTLD430-10- |
|
430mm /17" |
1.6m (1575mm) |
GTLA430-16- |
GTLD430-16- |
|
430mm /17" |
2m (2025mm) |
GTLA430-20- |
GLTD430-20- |
|
530mm /21" |
1m (975mm) |
GTLA530-10 |
GTLD530-10- |
|
530mm /21" |
1.6m (1575mm) |
GTLA530-16 |
GTLD530-16- |
|
530mm /21" |
2m (2025mm) |
GTLA530-20 |
GTLD530-20- |
|
630mm /25" |
1m (975mm) |
GTLA630-10 |
GTLD630-10- |
|
630mm /25" |
1.6m (1575mm) |
GTLA630-16 |
GTLD630-16- |
|
630mm /25" |
2m (2025mm) |
GTLA630-20 |
GTLD630-20- |
